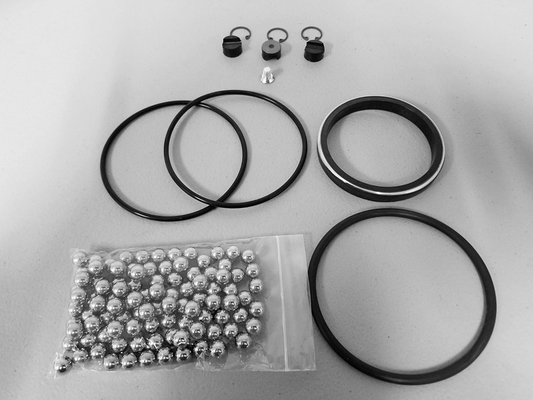

4-Inch Figure 1002 TSI-Style Swivel Joint Repair Kit

4-Inch Figure 1002 TSI-Style Kit: Check the Joint Reference and Parts List

This enquiry is for replacement parts for the stated 4-inch Figure 1002 TSI-style swivel joint reference. The nominal connection size and figure number do not define each seal dimension. Confirm the equipment manufacturer, exact joint style and revision before selecting parts.

Confirm whether balls, retainers or other non-rubber parts are required; their inclusion depends on the agreed kit list. AS568 references apply only to specified O-rings. The repair kit has no independent pressure rating. Follow the joint manufacturer procedures for inspection, assembly and testing. ISO 9001 relates to our quality management system.

Related Wireline O-Rings and Kits

Shanghai Qinuo accepts related wireline adapter kit enquiries from equipment drawings and parts lists. Confirm compound grade and temperature requirements for each kit; this related range does not define the contents of the swivel joint kit above.

=>Durometer of o rings to be specified by customer.

=>Customization is also available for customers that require non-standard compounds, additional or customer specific metal or other non-rubber parts.

=>Customer labeling also available.

Related wireline packaged kit references (ordered separately):

• #10 setting tool - With burst disk

• #20 setting tool - With burst disk

• AP Compact Setting Tool Kit

• Grease Tubes Seal Kit

• 3 1/2” Shorty Kits

• 3 - 1/8" Weight Bar Kit

• #10 Baker Firing Head Kit

• #20 Firing Head Kit

• #20 BP3.SEC kits

• #10 BP3.SEC kits

• T-BRT redress kit

• T-1 Set

• GC Stripper Head Redress Kits

Note: Bleeder disc options apply to the relevant wireline kit; confirm its specified bill of materials.

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut  (application:5" port plug)

6) Threaded Brass Plug  (application: setting tool plug )

SHQN Other relevant products

Oilfield Plug Valve Seals

products data sheet

Hammer union seals:

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

Available size : 1", 2", 3", 4" and 5"

Material enquiries for related hammer union seals include NBR, HNBR and FKM grades or PTFE designs by specification. Review the actual fluid and temperatures with the selected grade. HNBR alone does not establish sour-gas qualification. Brass or stainless backup arrangements must match the approved union drawing.

Swab cups:

Related swab cups are ordered separately from this swivel joint repair kit. A swab cup seals against the tubing or casing bore during fluid recovery. Select the cup profile, outside diameter, mandrel bore, core arrangement and rubber compound for the actual tubing inside diameter, fluid exposure and permitted fluid-column load. Confirm the selected cup and mandrel operating instructions before use.

MV Style, TA style, TUF style, NUF style and V styles.

Rubber o rings or kits

Shanghai Qinuo accepts AS568 O-ring enquiries by dash number and compound grade. Confirm tooling and availability for the exact sizes.

Color, hardness, packing all can be custom making.

Other oil field rubber and plastic fittings:

Rubber packer elements

Thread protectors

Flow tubes

Other parts by drawing.
